Also see:

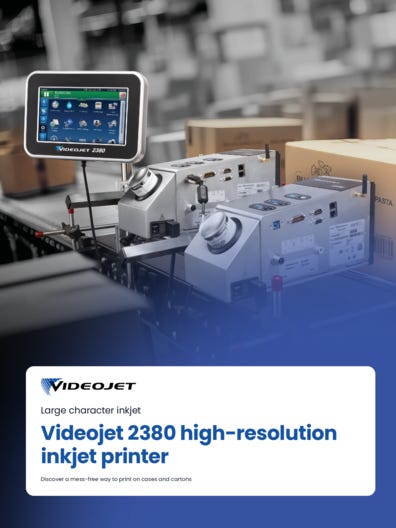

Videojet 2380 Large Character Inkjet Coder
Large character marking (LCM) system
- A complete large character inkjet coder for cases and cartons
- Modular and easy to integrate, with fast start-up, it delivers worry-free performance
- Designed for operation and maintenance by any user with minimal training or experience
- Patented micro-purge technology automatically performs routine printhead cleaning, helping to ensure consistent print quality with less mess or maintenance
- It prints durable, high-resolution text, logos, and bar codes, ready to meet the demands of the distribution chain
Contact us for New Equipment Sales: +44 1480 443205
Videojet 2380
Specs
Specification | Value |
Print Speed | |
Bar Code Printing | 0.3 – 66 m/min (1.0 – 216 ft/min) |
Alphanumeric Text | Up to 132 m/min (433 ft/min) Speeds are density dependent |
Print Area (Height x Length) | 70 x 2000 mm (2.8 x 78 in) |
Printheads | 70 mm (2.8 in) high 180 dpi |
User Interface | 8″ high-response TFT-LCD touch screen |
Connectivity options | RS232, dual Ethernet and Wi-Fi |
On-Board Memory | 8 GB memory |
Benefits
A versatile solution that adapts to your requirements
- Two printheads can be easily integrated, with no additional hardware needed, allowing coding of up to 5.5 inch (140mm) high print spaces, or coding on two sides of a box
- The system offers USB, VideojetConnect™, and ZPL emulation
- A bar code scanner can be easily integrated with the HMI for rapid job selection and data entry
- Wi-Fi connectivity is embedded in the printer, for remote access and analytical capabilities
Consistent, reliable high-quality codes
- A patented, automated micro-purge system can be programmed to clean the printhead nozzles at specific intervals, helping to prevent blockages without stopping the production line
- An air knife helps to clean the printhead nozzle plate, supporting long production runs
- A gyroscopic sensor monitors the printer mounting angle in real-time, helping to prevent ink leaks, and detects and records external impact signals
An easy-to-use marking system
- An intuitive, easy-to-use touchscreen HMI offers code assurance and guides you every step of the way, greatly reducing printer interactions and potential user errors
- The touchscreen user interface offers onboard job editing, can be placed in an optimal position for the operator, and manages up to two printheads
- Existing CLARiTY™ print jobs are 100% compatible with the Videojet 2380 and can be downloaded via USB, for easy upgrading
- A low-cost return line filter changes the associated ink-cup cleaning cycle from daily to monthly, reducing maintenance, while wiping the printhead surface is the only daily maintenance recommended
Expertly designed for the way you work
- The Videojet 2380 is made of durable 304-grade stainless steel
- Ink used in the micro-purge printhead cleaning system is reclaimed and reused by the printer, reducing running costs
- A contrast adjuster allows the contrast density to be reduced, enabling more prints per ink canister
- The robust printhead uses proven print technology to deliver optimal uptime
Applications
All
Corrugate – Direct Marking
![lcm-2380-corrugate-coffee-logo](https://global.videojet.com/wp-content/uploads/dam/image/substrate/corrugate/lcm-2380-corrugate-coffee-logo.jpg?w=1060&quality=80)
Printing and Labeling on Corrugate
Viewimage gallery
Viewweb page![lcm-2380-corrugate-3-sizes-of-boxes](https://global.videojet.com/wp-content/uploads/dam/image/substrate/corrugate/lcm-2380-corrugate-3-sizes-of-boxes.jpg?w=1060&quality=80)
Printing and Labeling on Corrugate
Viewmedia gallery
Viewweb page![lcm-2380-corrugate-sardines-logo](https://global.videojet.com/wp-content/uploads/dam/image/substrate/corrugate/lcm-2380-corrugate-sardines-logo.jpg?w=1060&quality=80)
Printing and Labeling on Corrugate
Viewmedia gallery
Viewweb page![lcm-2380-white-corrugate-chinese-code](https://global.videojet.com/wp-content/uploads/dam/image/substrate/corrugate/lcm-2380-white-corrugate-chinese-code.jpg?w=1060&quality=80)
Printing and Labeling on Corrugate
Viewmedia gallery
Viewweb page![VJ-2340_60-boxes-96](https://global.videojet.com/wp-content/uploads/dam/image/substrate/corrugate/corrugate-printing-large-character-marking-bright-bg.jpg?w=1060&quality=80)
Printing and Labeling on Corrugate
Viewmedia gallery
Viewweb page![690x390-LCM-2351-2361-5](https://global.videojet.com/wp-content/uploads/dam/image/substrate/corrugate/marking-open-corrugate-box.jpg?w=1060&quality=80)
Printing and Labeling on Corrugate
Viewmedia gallery
Viewweb pageRelated Products
Unicorn![]() | Unicorn II![]() | 2120![]() | 2380![]() | |
Description | A compact, complete inkjet solution for large character, single line case coding. | A compact inkjet printer that provides high quality, reliable and economical large character printing of one or two lines. | This valve jet printer brings modernization and intergation to customer applications. With it ethernet IP and other connections capabilities, it will bring simplicitiy to any labelling needs. | Large character inkjet printer that offers a complete solution for marking cases and cartons. |
Print resolution | Low resolution | 180 dpi | ||
Print speed | 6.1 to 61 m/min (20 – 200 ft/min) | Up to 132 m/min (433 ft/min) | ||
Print heights | Standard Print Height: 3/8 inch (10mm) Optional Heights: 5/16 inch (7.9mm); 1/2 inch (12.7mm); 3/4 inch (20mm) | Standard print height: 1.0 inch (25mm) Optional heights: 0.75 inch (20mm), 1.25 inches (32mm), 1.9 inches (48mm) | 70 x 2000 mm (2.8 x 78 in) | |
Message length | Up to 40 characters | |||
Message storage capacity | Up to 52 messages | Up to 40 messages | ||
Leader/follower capability | N/A | Up to 2 printers | ||
Ink | 0.23 L (8 fl oz) non- aerosol ink bottle 3 porous inks, 4 non-porous inks | 0.23 L (8 fl oz) non- aerosol ink bottle 18.9 L (5 gallon) bulk ink option 3 porous inks, 4 non-porous inks | 2 porous inks, 5 non-porous inks |
